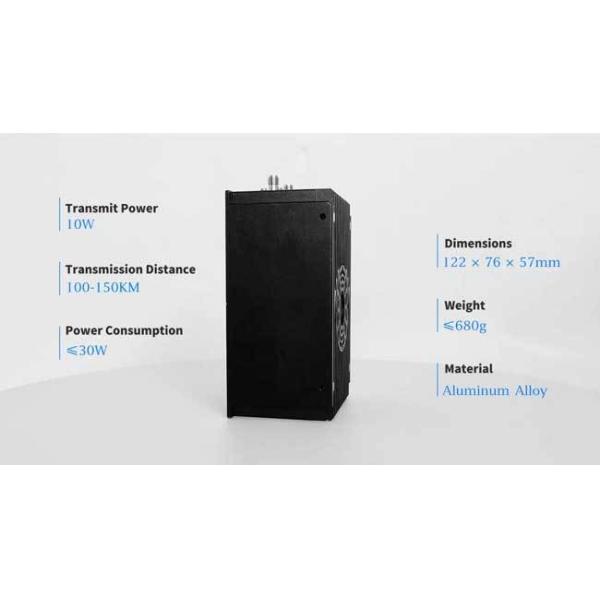

CD300Pro Ultra Long Range HD UAV Video Transmitter with SBUS Intercae Point to Multi-Point Network Solution for Drones

Name: CD300Pro Ultra Long Range HD UAV Video Transmitter with SBUS Intercae Point to MultiPoint Network Solution for Drones
Brand: SUNTOR
Price: 1 USD

Wholesale CD300Pro Ultra Long Range HD UAV Video Transmitter with SBUS Intercae Point to Multi-Point Network Solution for Drones from china suppliers

Brand Name : SUNTOR

Model Number : CD300Pro

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 set/ month

Packaging Details : Carton

Technology : TDD-OFDM / MIMO / 1T2R

Frequency Range : 1.4G / 2.4GHz selectable

Bandwidth : 5MHz / 10MHz / 20MHz

Data Rate : 24Mbps @ 10MHz (Peak)

Power : DC12V Power Supply

Modulation : QPSK / 16QAM / 64QAM

Contact Now

CD300Pro Drone Video Transmission Radio

1. Feature

800 Grams Weight
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
300KM Air-to-Ground Transmission Distance

2. Specification

Wireless
Technology	TDD-OFDM / MIMO / 1T2R
Modulation	QPSK / 16QAM / 64QAM
Data Rate	24Mbps@10MHz(Peak)
Frequency Range	1428~1448MHz(Standard)
	2401~2481(Optional)
	806~826Mhz(Optional)
Bandwidth	5MHz/10MHz/20MHz
TX Power	43dBm ± 2
RX Sensitivity	-99dBm @ 5MHz

System
Serial Port	1TTL+1 RS232+1 S.BUS
Video Port	2 ETH or 1 ETH +1 SDI/HDMI(Customized)
Security	AES128 Encryption
Power	DC12V~24V Power Supply ≤60W @ DC12V Power Consumption(Air)

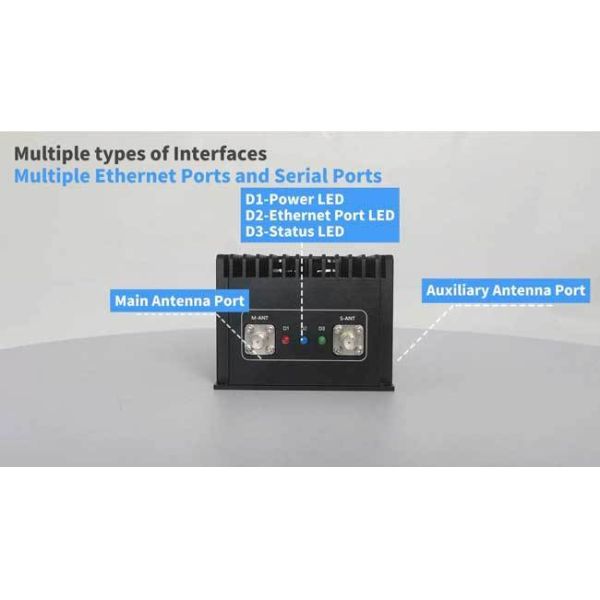

Interface
RF Antenna	SMA×2
Serial Port Interface	JST×2
S.BUS Interface	JST×1
Video Port Interface	JST×(ETH)×2 or JST(ETH) × 1 + SDI / HDMI × 1(Cus.)
Power Input	XT30

Physical
Dimension	≤130 x 80 x 60mm(Air)
Weight	≤800g (Air)

CD300Pro Ultra Long Range HD UAV Video Transmitter with SBUS Intercae Point to Multi-Point Network Solution for Drones

3. Accessories

OMNI Antenna for Air Unit × 2

OMNI Antenna for Ground Unit × 1

Directional Antenna for Ground Unit × 1

ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)

Serial Cable × 2

S.BUS Cable × 1

XT30 Power Cable × 1

VTA-Manual (Manual Tracking Antenna System) ×1

4. Packing & Delivery
